HPT Cone Crusher

Input Size

0-350mm

Capacity

45-1200TPH

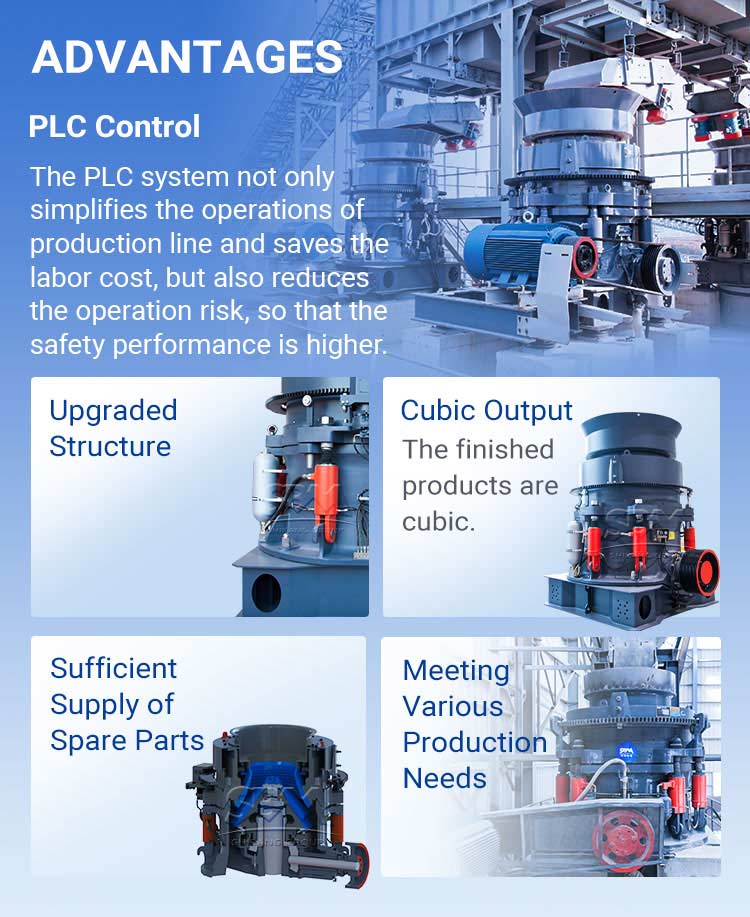

HPT Hydraulic Cone Crusher makes a breakthrough on its structure. After optimization, the structure improves the performance and crushing capability a lot. Meanwhile, the hydraulic lubrication system not only ensures the stable operation but also makes the system control more intelligent.

MATERIAL

Calcite

Bentonite

Bauxite

Barite

Slag

Gypsum

Kaolin

Limestone

SPECIFICATION

HPT100

Cavity Type	C1(Ultra coarse)
Size of Tight Inlet(mm)	140
Size of Tight Inlet(MIN)(mm)	19
Capacity(TPH)	50-140
Installed Power(MAX)(kw)	90
Cavity Type	C2(crude)
Size of Tight Inlet(mm)	100
Size of Tight Inlet(MIN)(mm)	13
Capacity(TPH)	50-140
Installed Power(MAX)(kw)	90
Cavity Type	M(中)
Size of Tight Inlet(mm)	70
Size of Tight Inlet(MIN)(mm)	9
Capacity(TPH)	50-140
非常大Installed Power(kw)	90
Cavity Type	F1(fine)
Size of Tight Inlet(mm)	50
Size of Tight Inlet(MIN)(mm)	9
Capacity(TPH)	50-140
Installed Power(MAX)(kw)	90
Cavity Type	F2(superfine)
Size of Tight Inlet(mm)	20
Size of Tight Inlet(MIN)(mm)	6
Capacity(TPH)	50-140
Installed Power(MAX)(kw)	90

HPT200

Cavity Type	C2(crude)
Size of Tight Inlet(mm)	185
Size of Tight Inlet(MIN)(mm)	19
Capacity(TPH)	90-250
Installed Power(MAX)(kw)	160
Cavity Type	M(中)
Size of Tight Inlet(mm)	125
Size of Tight Inlet(MIN)(mm)	16
Capacity(TPH)	90-250
Installed Power(MAX)(kw)	160
Cavity Type	F1(fine)
Size of Tight Inlet(mm)	95
Size of Tight Inlet(MIN)(mm)	13
Capacity(TPH)	90-250
Installed Power(MAX)(kw)	160
Cavity Type	F2(superfine)
Size of Tight Inlet(mm)	75
Size of Tight Inlet(MIN)(mm)	10
Capacity(TPH)	90-250
非Installed Power(MAX)(kw)	160

HPT300

Cavity Type	C1(Ultra coarse)
Size of Tight Inlet(mm)	230
Size of Tight Inlet(MIN)(mm)	25
Capacity(TPH)	110-440
非常大Installed Power(kw)	250
Cavity Type	C2(crude)
Size of Tight Inlet(mm)	210
Size of Tight Inlet(MIN)(mm)	19
Capacity(TPH)	110-440
Installed Power(MAX)(kw)	250
Cavity Type	M(中)
Size of Tight Inlet(mm)	150
Size of Tight Inlet(MIN)(mm)	16
Capacity(TPH)	110-440
Installed Power(MAX)(kw)	250
Cavity Type	M(中)
Size of Tight Inlet(mm)	105
Size of Tight Inlet(MIN)(mm)	13
Capacity(TPH)	110-440
Installed Power(MAX)(kw)	250
Cavity Type	F2(superfine)
Size of Tight Inlet(mm)	80
Size of Tight Inlet(MIN)(mm)	10
Capacity(TPH)	110-440
Installed Power(MAX)(kw)	250

HPT400

Cavity Type	C1(Ultra coarse)
Size of Tight Inlet(mm)	295
Size of Tight Inlet(MIN)(mm)	30
Capacity(TPH)	135-630
Installed Power(MAX)(kw)	315
Cavity Type	C2(crude)
Size of Tight Inlet(mm)	251
Size of Tight Inlet(MIN)(mm)	25
Capacity(TPH)	135-630
Installed Power(MAX)(kw)	315
Cavity Type	M(中)
Size of Tight Inlet(mm)	196
Size of Tight Inlet(MIN)(mm)	20
Capacity(TPH)	135-630
Installed Power(MAX)(kw)	315
Cavity Type	F1(fine)
Size of Tight Inlet(mm)	110
Size of Tight Inlet(MIN)(mm)	13
Capacity(TPH)	135-630
Installed Power(MAX)(kw)	315
Cavity Type	F2(superfine)
Size of Tight Inlet(mm)	90
Size of Tight Inlet(MIN)(mm)	10
Capacity(TPH)	135-630
Installed Power(MAX)(kw)	315

HPT500

Cavity Type	C1(Ultra coarse)
Size of Tight Inlet(mm)	330
Size of Tight Inlet(MIN)(mm)	38
Capacity(TPH)	220-790
Installed Power(MAX)(kw)	400
Cavity Type	C2(crude)
Size of Tight Inlet(mm)	290
Size of Tight Inlet(MIN)(mm)	30
Capacity(TPH)	220-790
Installed Power(MAX)(kw)	400
Cavity Type	M(中)
Size of Tight Inlet(mm)	210
Size of Tight Inlet(MIN)(mm)	22
Capacity(TPH)	220-790
Installed Power(MAX)(kw)	400
Cavity Type	F1(fine)
Size of Tight Inlet(mm)	135
Size of Tight Inlet(MIN)(mm)	16
Capacity(TPH)	220-790
Installed Power(MAX)(kw)	400
Cavity Type	F2(superfine)
Size of Tight Inlet(mm)	95
Size of Tight Inlet(MIN)(mm)	13
Capacity(TPH)	220-790
Installed Power(MAX)(kw)	400

HPT800

Cavity Type	C1(Ultra coarse)
Size of Tight Inlet(mm)	350
Size of Tight Inlet(MIN)(mm)	38
Capacity(TPH)	310-1200
Installed Power(MAX)(kw)	630
Cavity Type	C2(crude)
Size of Tight Inlet(mm)	299
Size of Tight Inlet(MIN)(mm)	32
Capacity(TPH)	310-1200
Installed Power(MAX)(kw)	630
Cavity Type	M(中)
Size of Tight Inlet(mm)	265
Size of Tight Inlet(MIN)(mm)	25
Capacity(TPH)	310-1200
Installed Power(MAX)(kw)	630
Cavity Type	F1(fine)
Size of Tight Inlet(mm)	220
Size of Tight Inlet(MIN)(mm)	16
Capacity(TPH)	310-1200
Installed Power(MAX)(kw)	630
Cavity Type	F2(superfine)
Size of Tight Inlet(mm)	150
Size of Tight Inlet(MIN)(mm)	13
Capacity(TPH)	310-1200
Installed Power(MAX)(kw)	630
